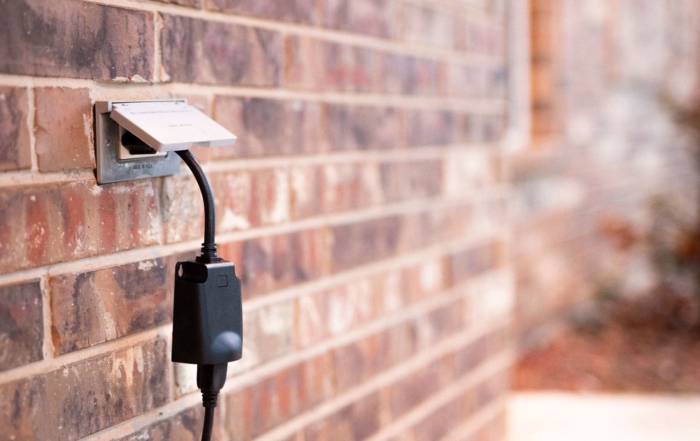

Smart Outdoor Plug is a Zigbee 3.0 Edge Router for control of SI shade and screen products. This product is an important part of your Zigbee 3.0 mesh and you will need at minimum one per room, and in the case of many shades in the same room, one additional unit for every 7th shade in the same room. This device is both a repeater and a smart plug that allow the user to control any outdoor lighting load with SI approved apps such as the TaHoma App. The device can be bound with other Zigbee 3.0 devices such as a Zigbee 3.0 Zen 2 shades when used with a TRO.Y. This Edge Router allows users to control our shading products from any smartphones, tablets, or voice assistants such as Alexa. The smart outdoor plug works with SI approved apps such as the TaHoma App which is available for free on both Google Play and the App Store.
Smart Outdoor Plug
Limited supplies. Please contact SI Design Services for assistance or consider using an alternative Zigbee Mesh Router such as the Smart Plug
Voice
When physical control is desired, we offer a wide array of wired and wireless control interfaces.
Touch
Our shading ecosystem integrates with popular voice command products such as Alexa and Google Home.
Automation
Automation based on the astronomical clock, and scenes to engage multiple systems instantaneously.
Power
120v AC, 60Hz
Load
(Max) 600W incandescent, 1/2HP motor, 1800W@15A (Resistive)
Operating Temperature
14-104° F (-10-40° C)
Signal Frequency
2.4 GHz
Range
Needs to be within 7m. of gateway or another edge router
Dimensions
3.4’’ D x 2.55’’ W x 1.63” H
(86.4mm x 64.7mm x 41.4 mm)
Parts in the Box
Smart Outdoor Plug, Screws (2), Anchors (2), Installation Instructions
Works with
- Zen shades
- LinkPro Z
- TaHoma
- Situo remotes
- Nano shades
- TaHoma App
- Smart Plug
- Smart Outlet
