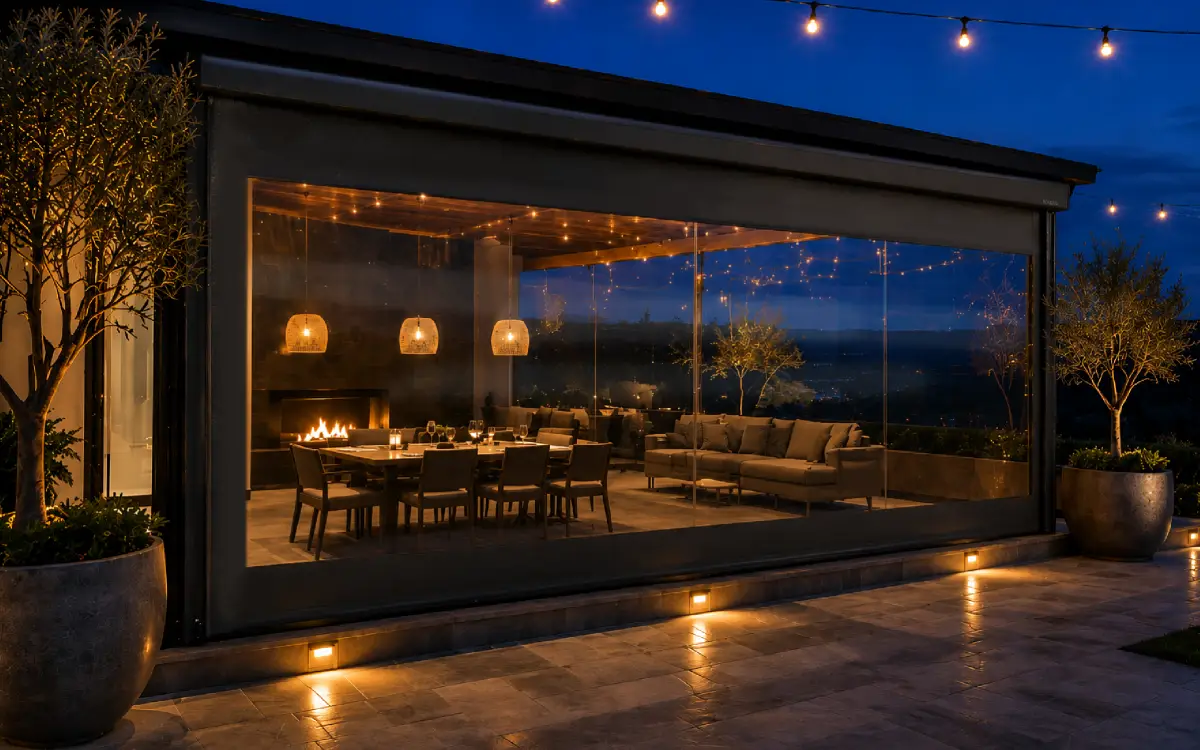

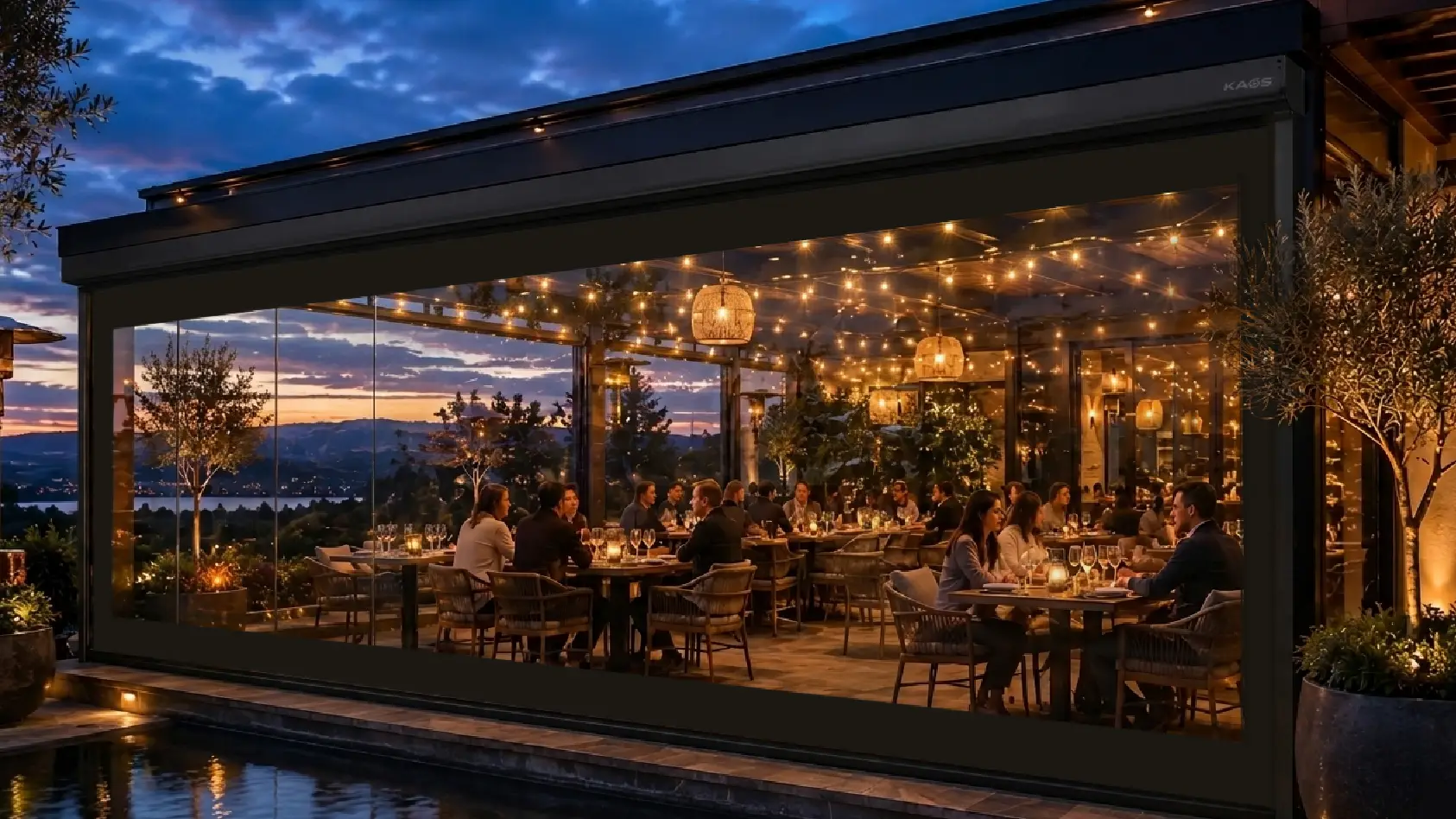

Crystal-Clear Vinyl Protection
Extend outdoor living with clear vinyl shades that help protect against wind, rain, dust, pollen, and insects while providing added temperature control. Designed with Soltis 502 vinyl from Serge Ferrari, these shades feature durable clear and border materials and are available in black, white, or custom colors for a seamless, tailored finish.
50 Nm Smart Quiet Motor
Delivering increased torque for greater turning power under demanding outdoor conditions—while operating smoother and quieter than any motor in its class. Designed specifically for outdoor applications, the motor features adjustable obstacle detection for enhanced safety and long-term system protection.
Features
- Made from proprietary self-lubricating material with UV-hardening pigments, Onyx™ is virtually indestructible
- Now available with clear and colored Vinyl options
- Protects against heat, UV, wind, salt air, and moisture

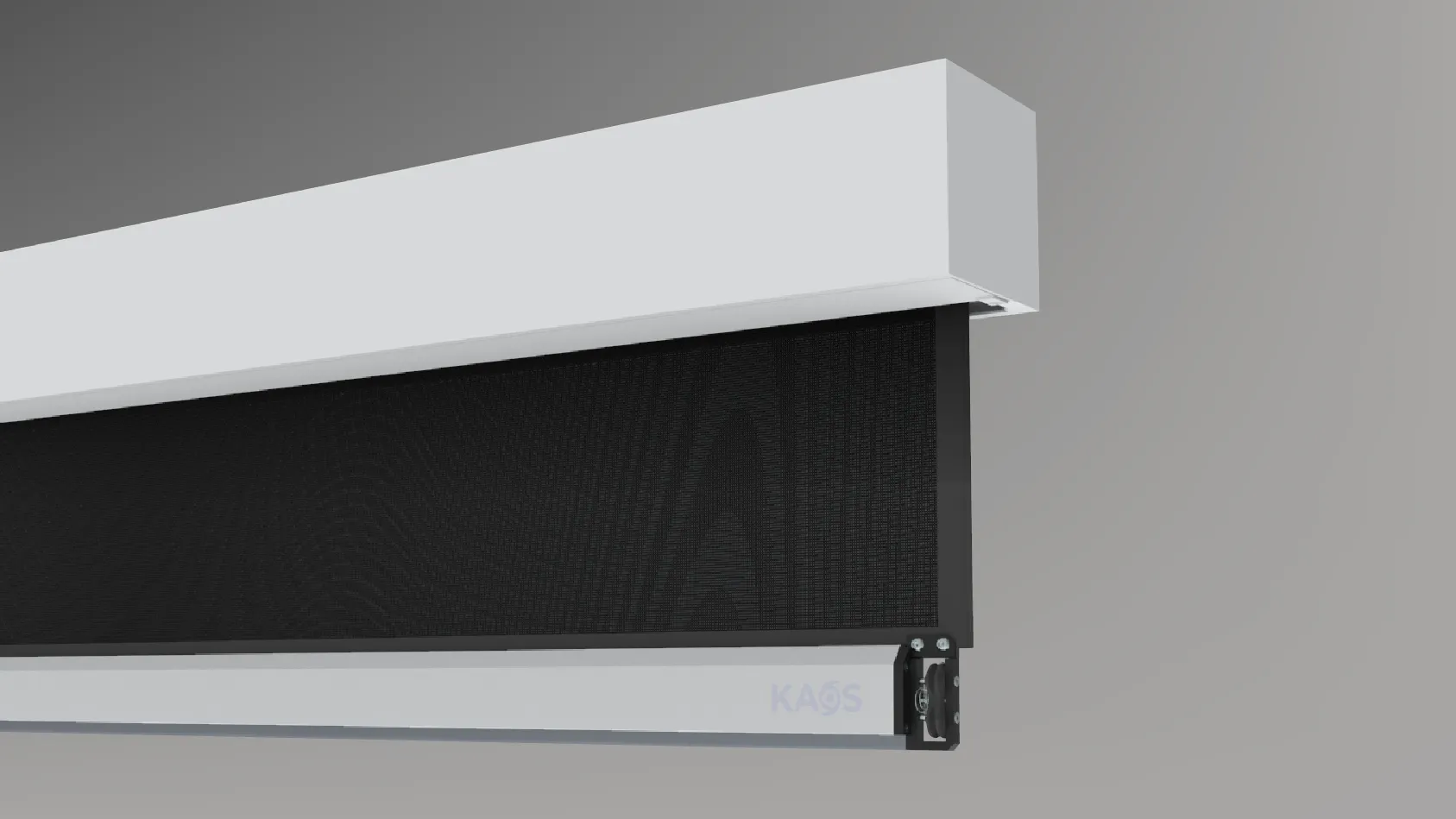

- Front Projection Material
- Offering hurricane rated material with Omegatex material with Kevlar

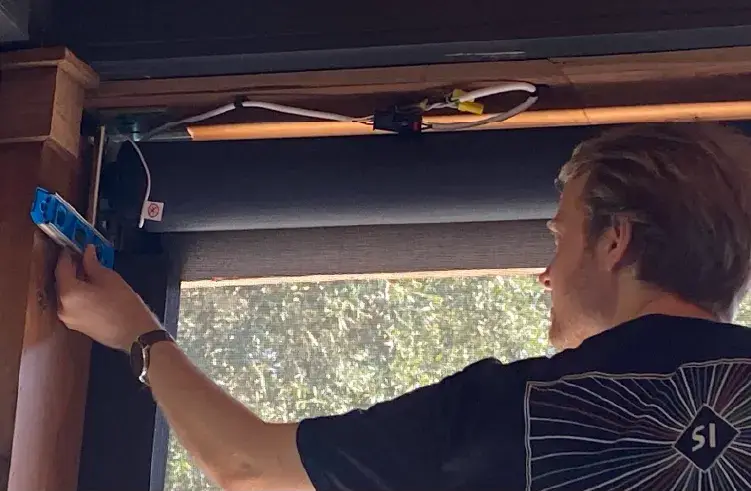

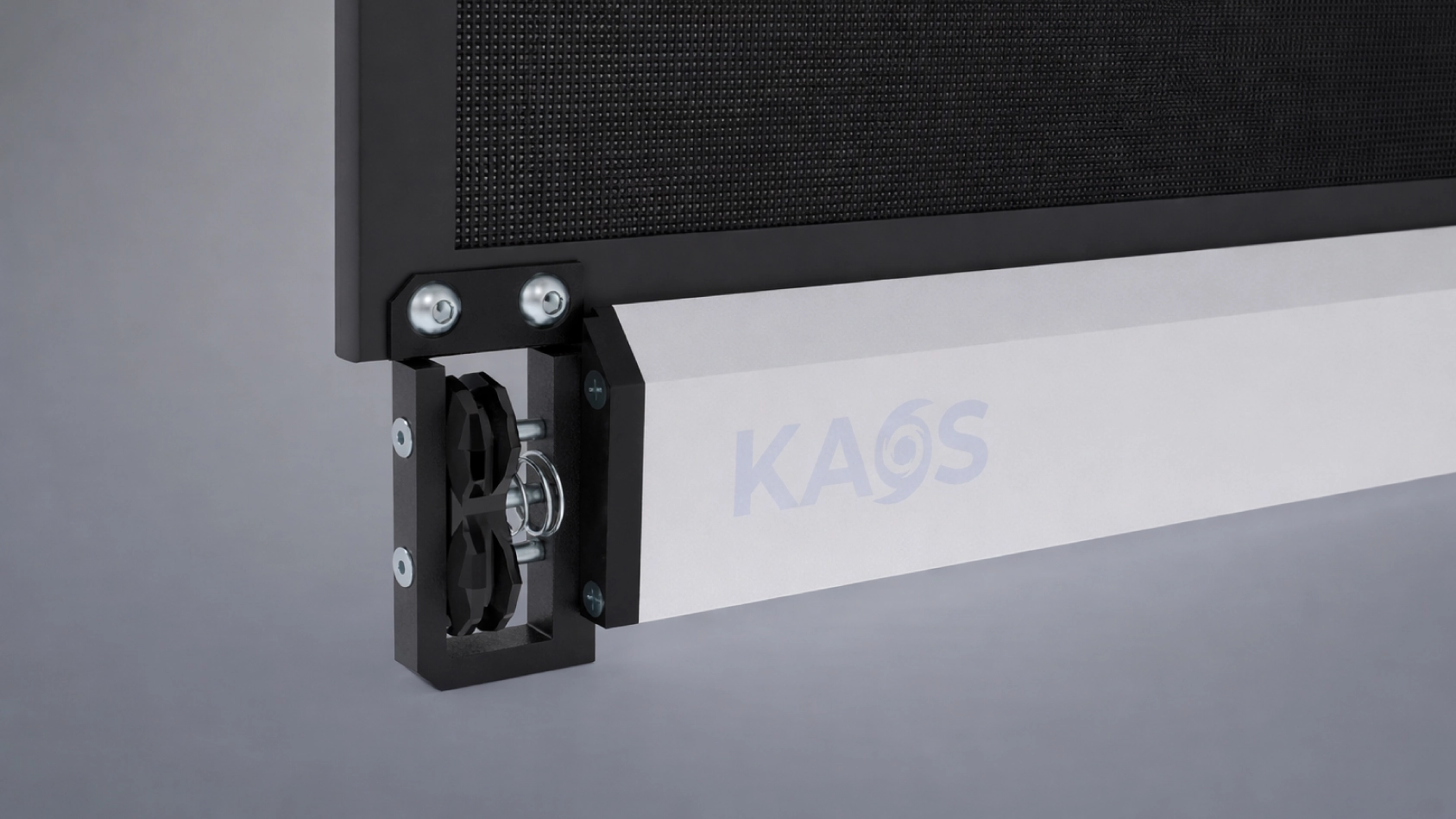

- With a unique snap-in tube and hidden bracket attachment, KAOS installs in half the time of traditional outdoor shading systems
- Square Industrial Design with Matching Custom Powder Coat Colors
- Ceiling, Wall or Pocket mount options
- Outside, Inside and Inside with U-Channel, Inwall mounting variables
- Available sizes up to 24′ wide
- 120v AC Power using stand alone remotes & integrates with SI Ecosystem
- Also works with Bond Bridge Pro
Min. & Max. Measurements
Min. Width: 37.75″
- 575 Box up to 18′ x 17.5′ *
- 675 Box up to 24′ x 17.5′

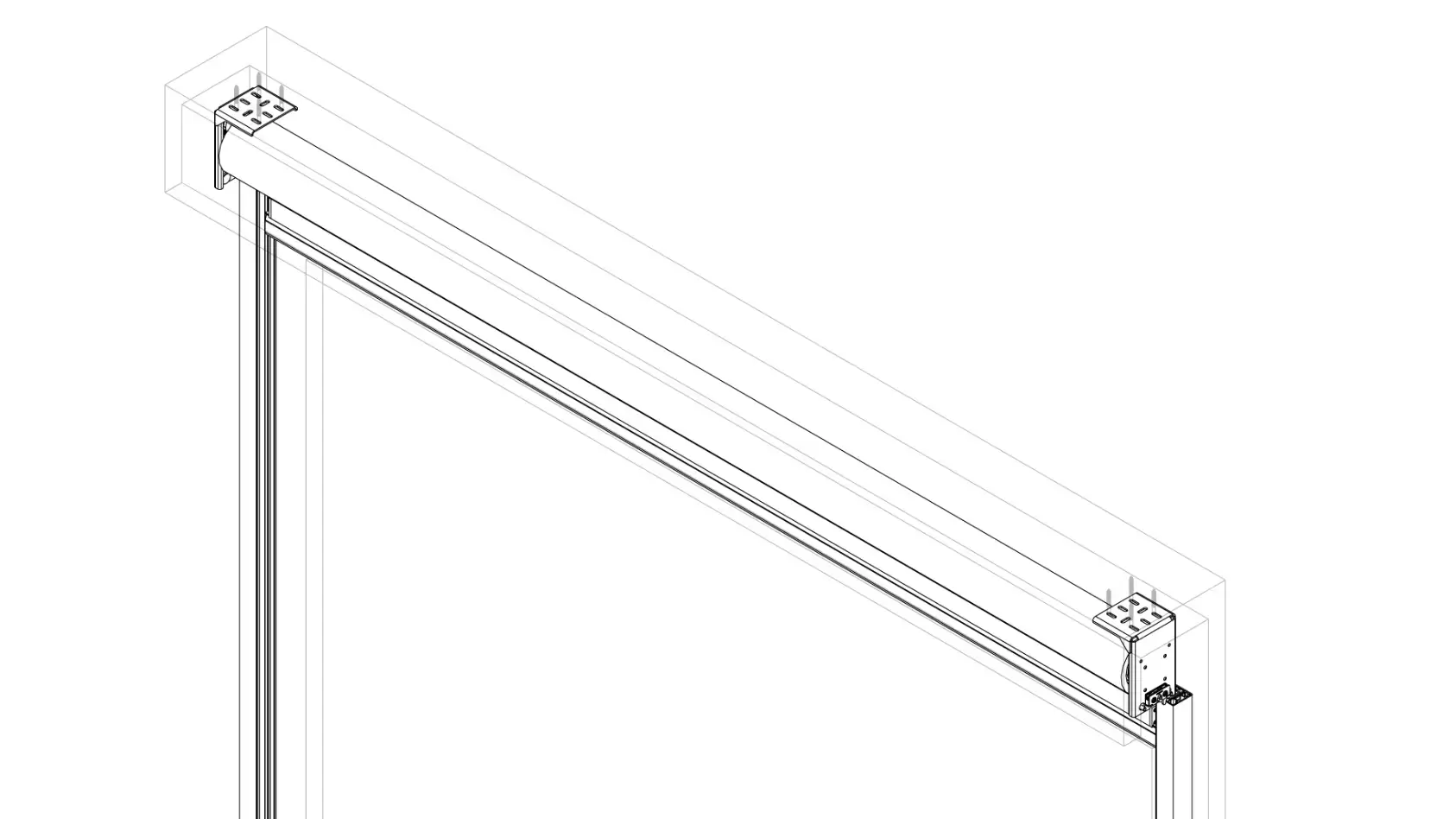

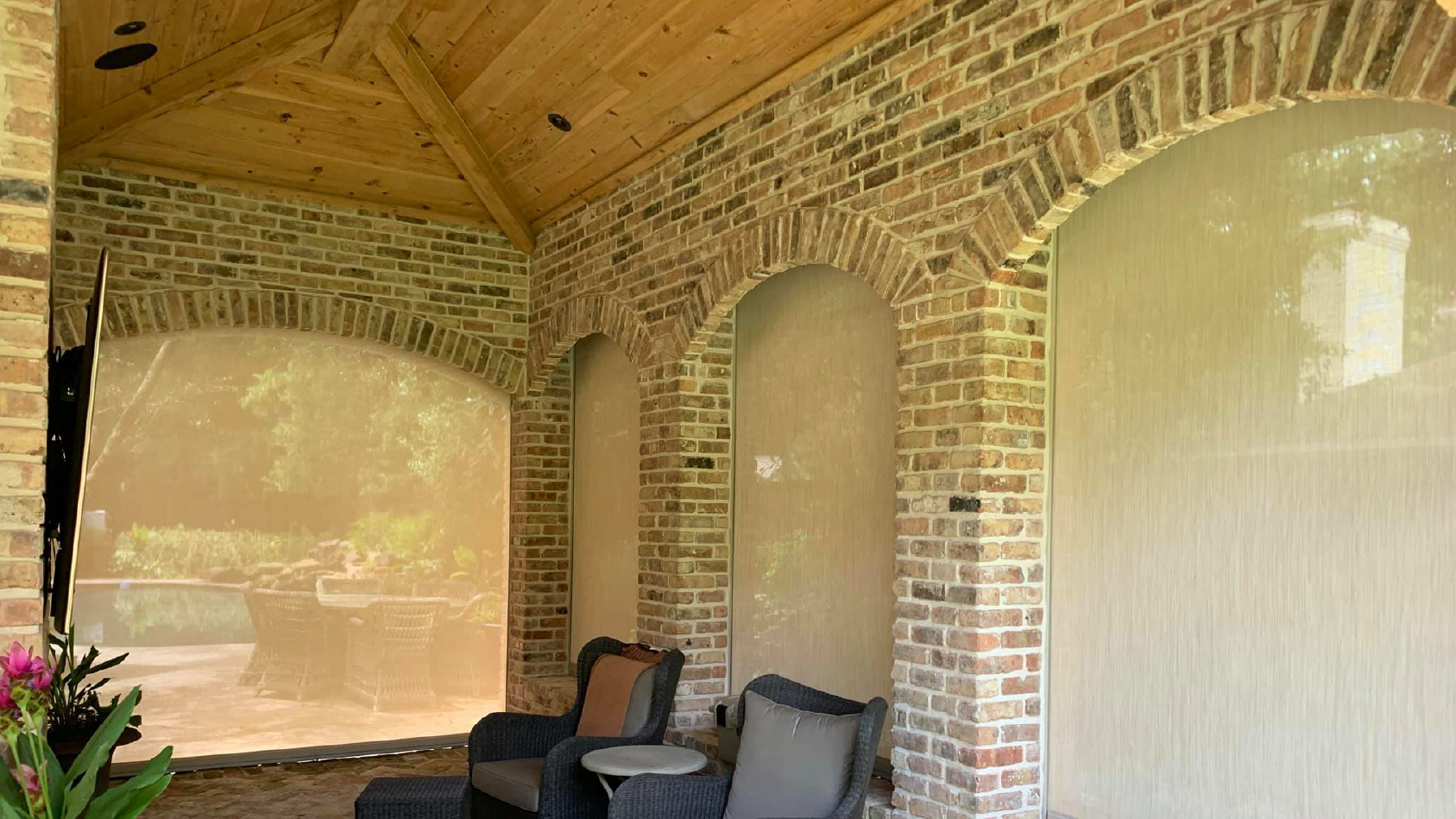

- Pocket up to 24′ x 17.5′
Note: If Vinyl fabric is picked in Box: Min. Side Border Width: 6″ Min. Top/Bottom Border Height: 12″.
Fabric selection may limit the size of the shade, or force cassette size to the next size up; use the SI Flow Tool and SI Design Services with help determining shade size and fabric selection compatibility.

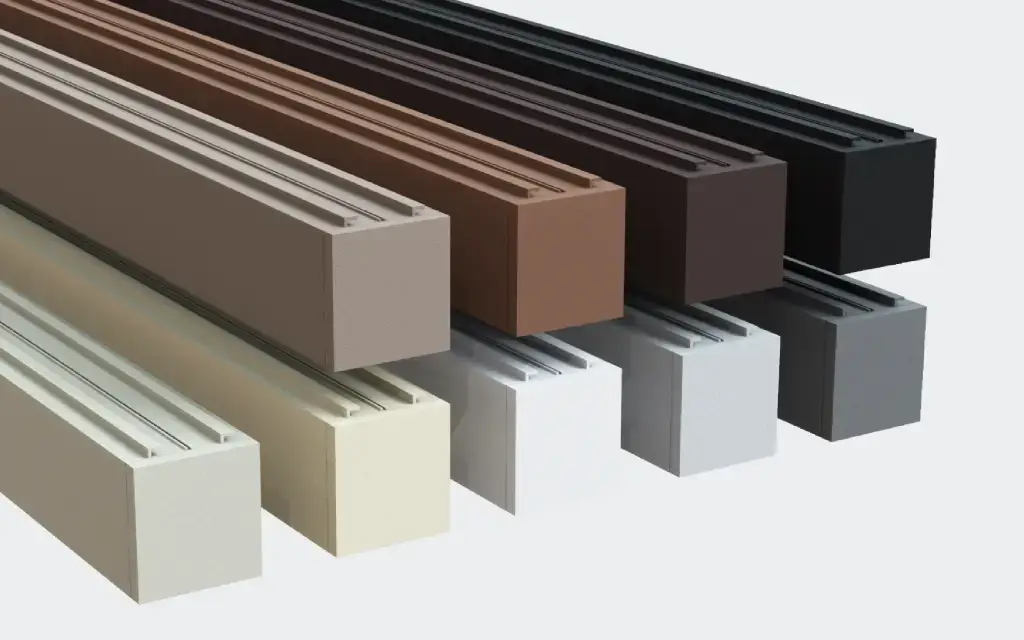

Cassette Colors
9 standard powder coat options: Anthracite, Beach Sand, Carbon, Corten, Dune, Glacier, Granite, Urban Bronze, White Quartz
Form Factors

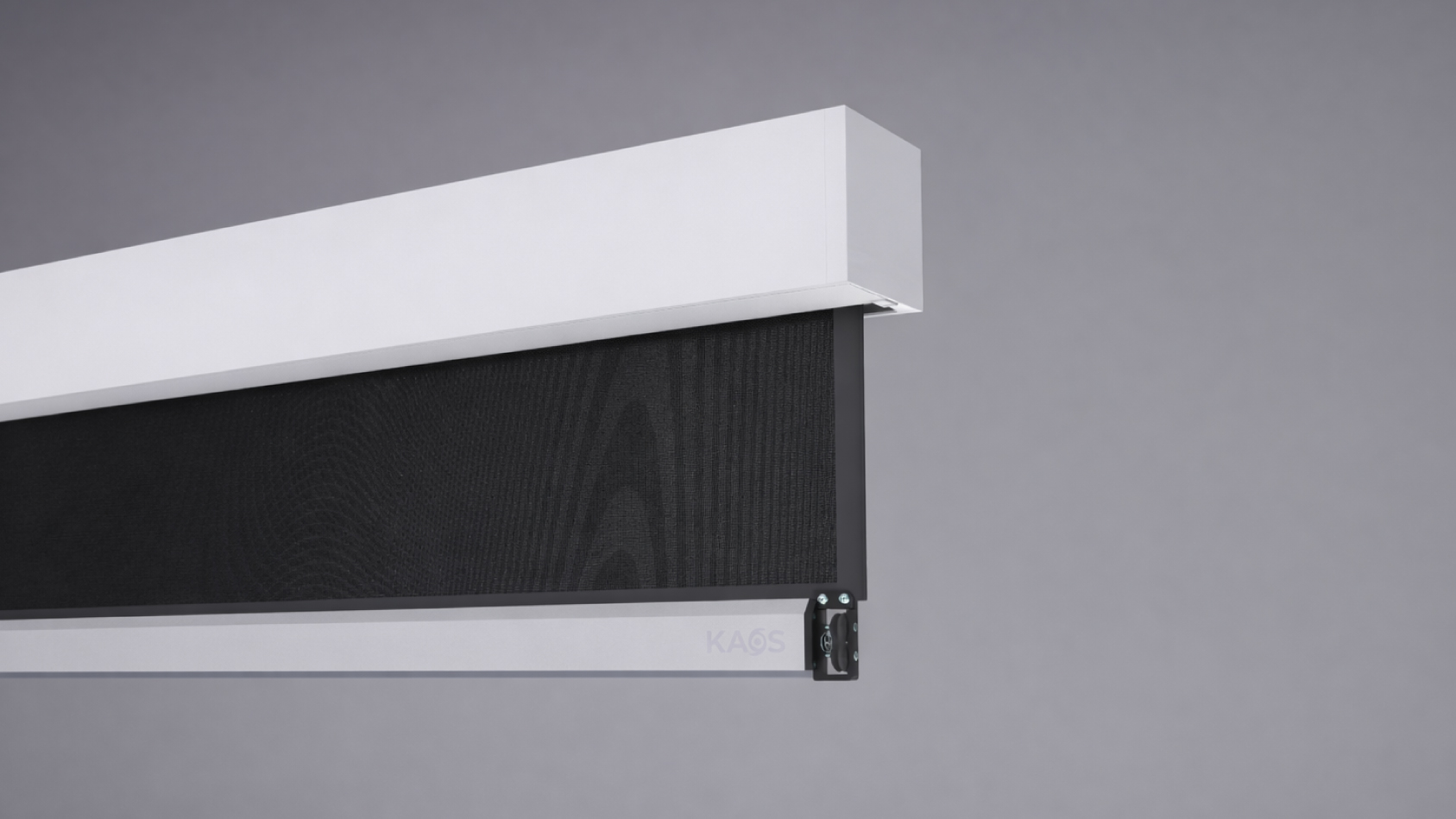

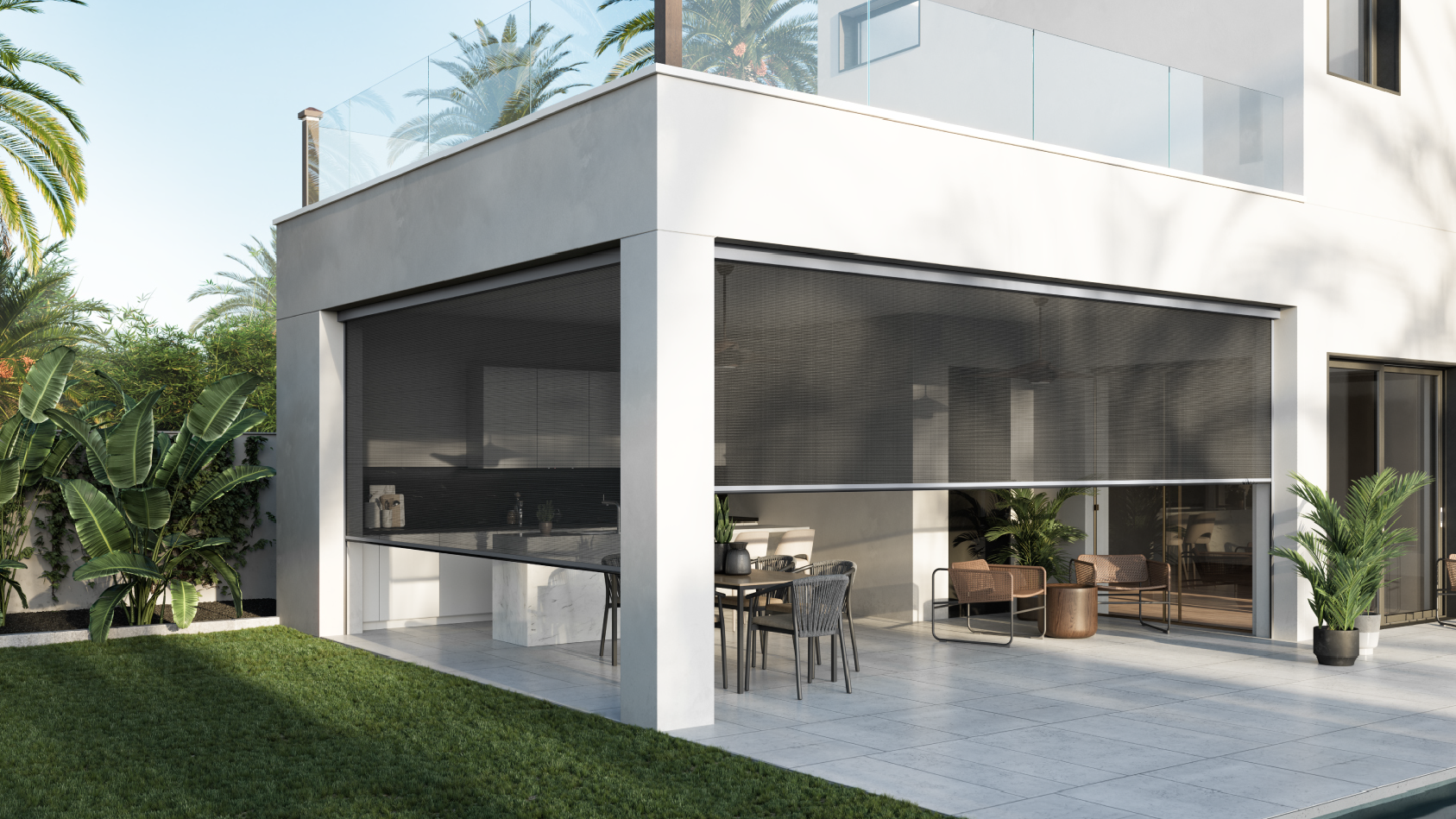

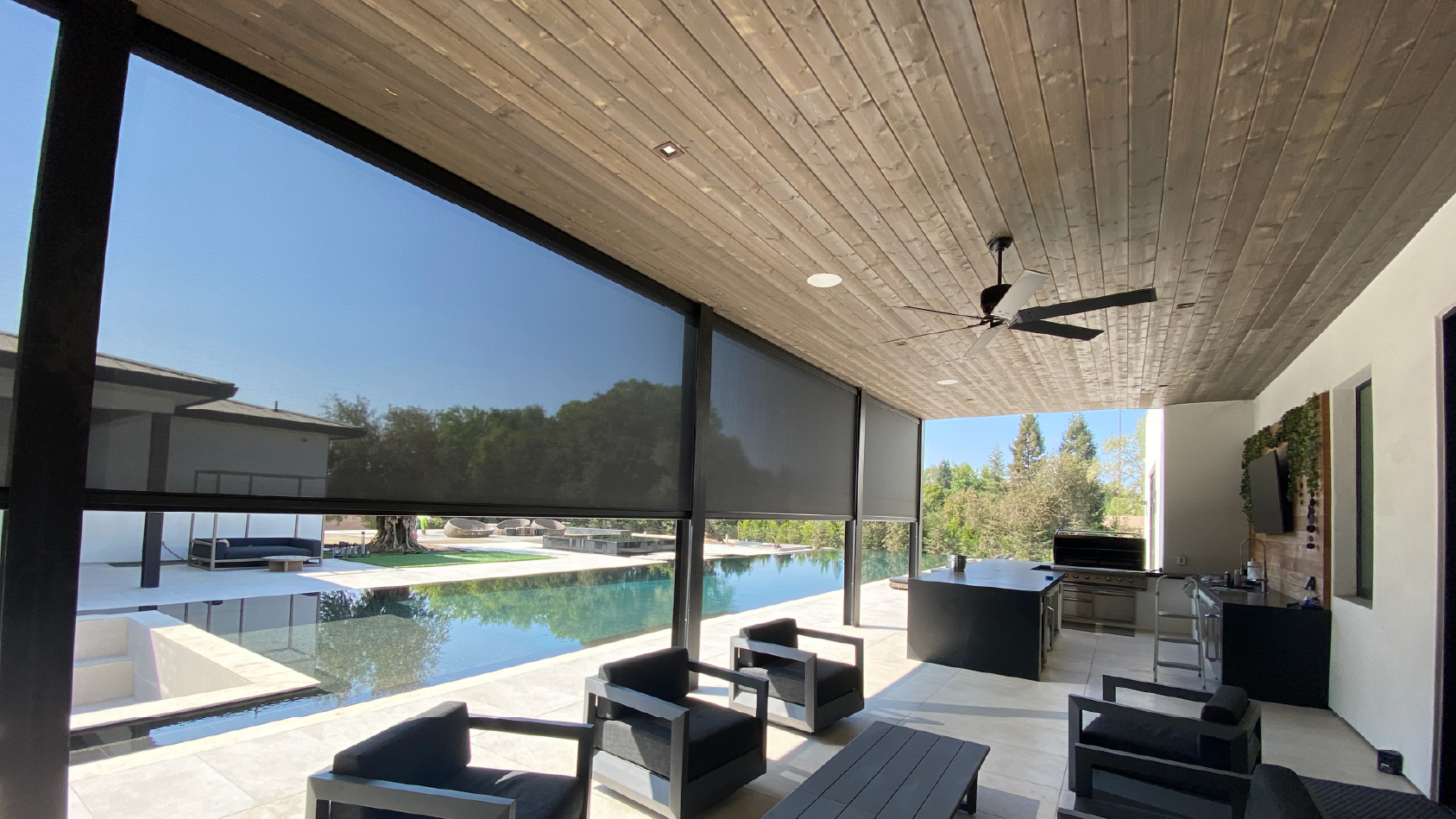

- Box
Cassette Dimensions
- 575: 5.63″ x 6.29″ (Up to 18′ x 17.5′)
- 675: 6.75″ x 7.45″ (Up to 24′ x 17.5′)
Compatible Power Sources
120v AC (Max 2.6 amp)
Supported Motor Types
RF Control
Environment
Outdoor Environment
Methods of Control
Wireless Integration and control
- RF Remote Control
- Bond Bridge Pro
- Screen Innovations Ecosystem
Fabrics
- Outdoor sunscreen options with different openness and color options. Rated @110mph wind rating. Internally tested.
- Clear Vinyl option, along with border material by Soltis 502, Serge Ferrari.
- Hurricane / Security rated 155mph wind and flying object rated. Tested by Twitchell.

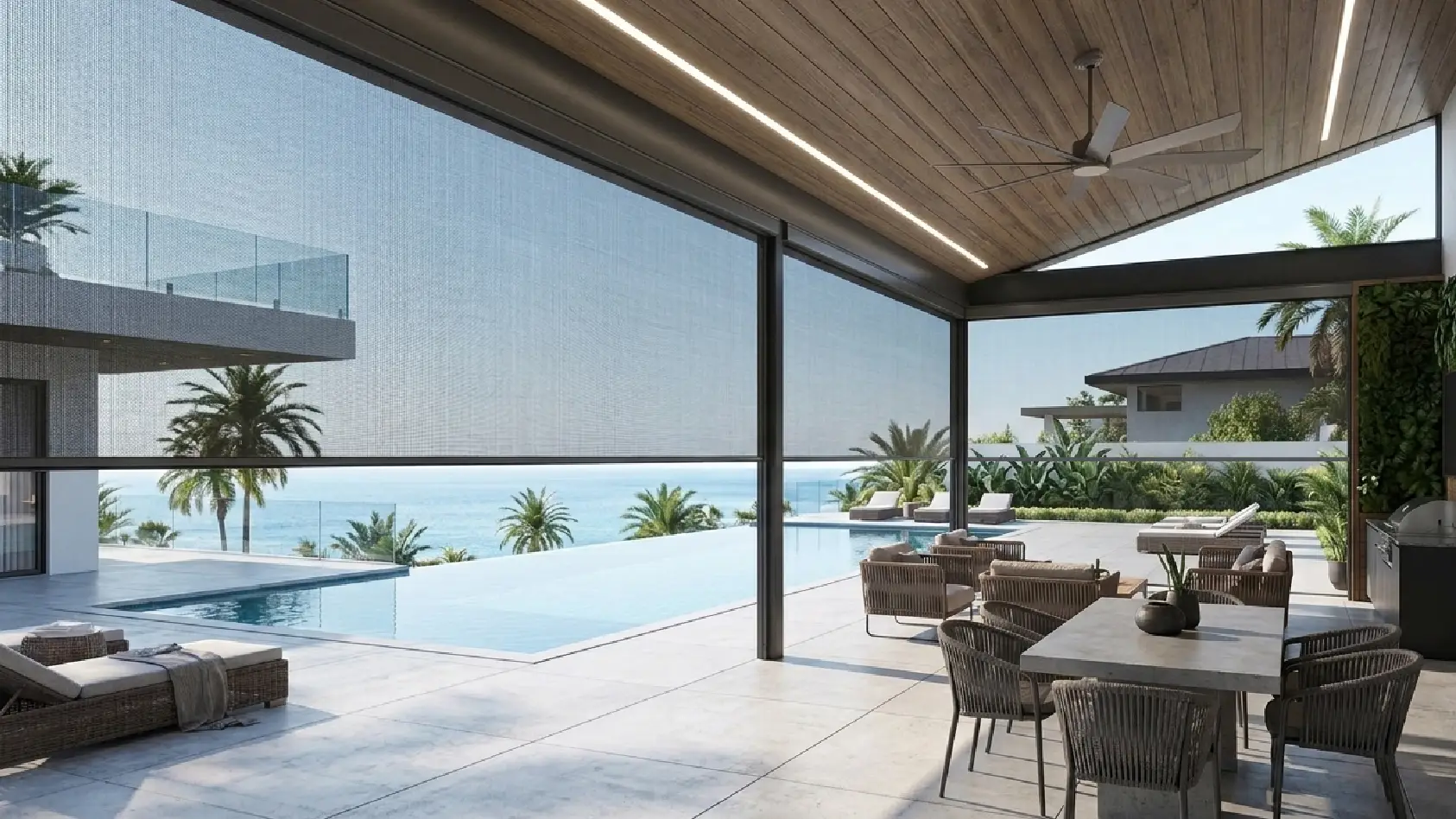

- Standard Bug Screen / No-See-um.
