DT 4-way masking screens feature masking from the sides, top and bottom of the screen allowing and aspect image to be perfectly masked. The range of 4-way masking screens allows for solutions from the smallest of cinema rooms through to the largest of auditorium installations.
DT Dynamic 4
$999.00

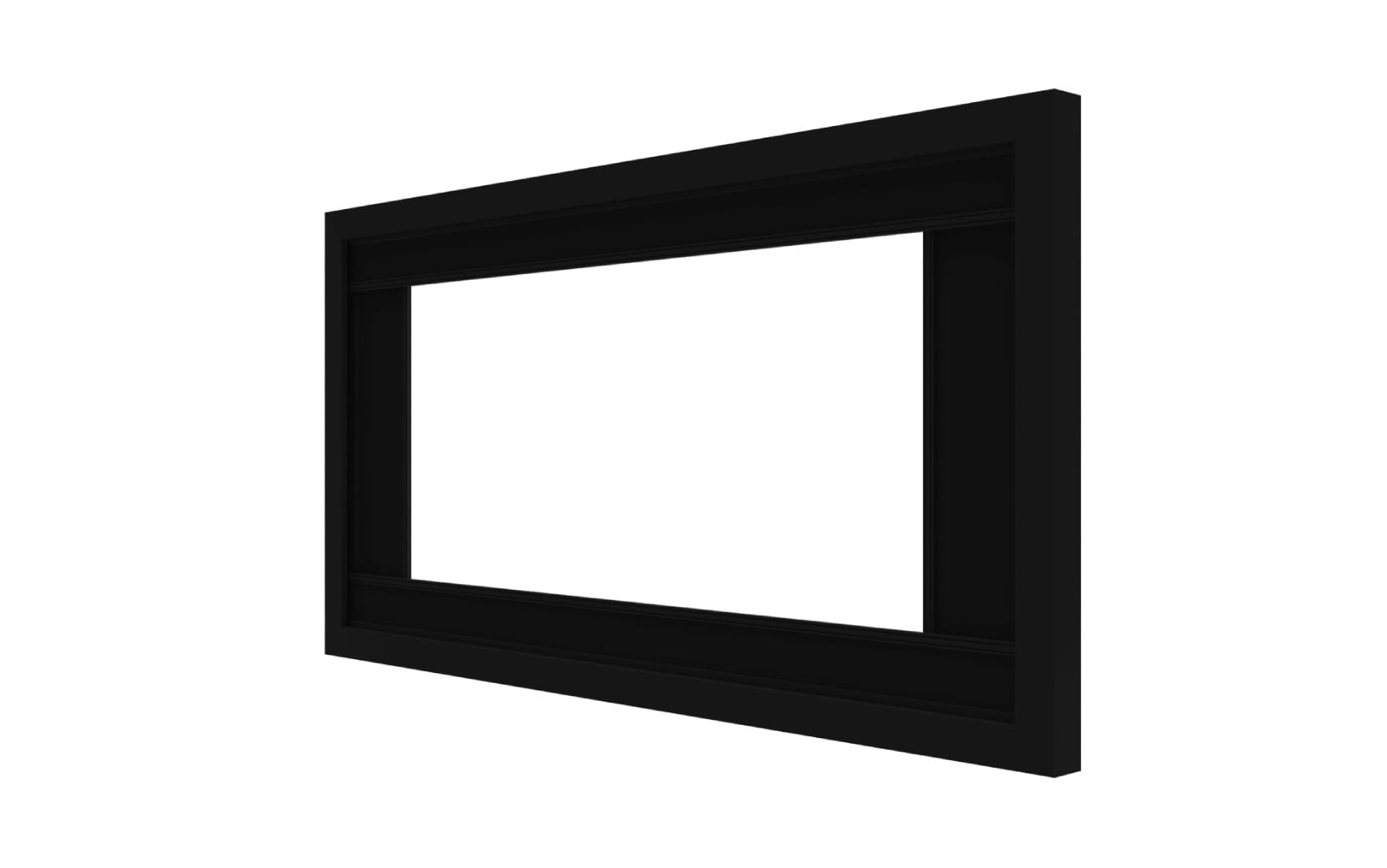

On wall projector screen with 4-way motorized masking
Now Shipping
Mask Position Logic
The Mask Position Logic (MPL) system is a proprietary development of DT Screens and enables the Dynamic-4 to calculate the exact location that the masks should be positioned to create any requested aspect ratio in the supported range. With MPL, setting mask presets is no longer required.
Size
Dynamic-4
Width = Viewable Screen width + 15.75″ (400mm)
Height = Viewable Screen height + 15.75″ (400mm)
Max frame depth = 7.68″ (195mm)
Wall Surface to image Surface = 1.99″ (51mm)
Dynamic-4-L
Width = Viewable Screen width + 18″ (458mm)
Height = Viewable Screen height + 18″ (458mm)
Max frame depth = 8.11″ (206mm)
Wall Surface to image Surface = 2.36″ (60mm)
Dynamic-4-XL
Width = Viewable Screen width + 23.6″ (600mm)
Height = Viewable Screen height + 23.6″ (600mm)
Max frame depth = 9.69″ (246mm)
Wall Surface to image Surface = 3.78″ (96mm)
Color
Black Velvet
Aspect Ratios
Motorized Variable Masking – 1.33 to 2.40:1
Installation | Adjustment
Front image surface fitting – fit the frame to the wall then install the image surface
Motor
Whispertec quiet motor
(DT-DYN-4, DT-DYN-4-L only)
Power Type
120v or 230v
|
|
|
