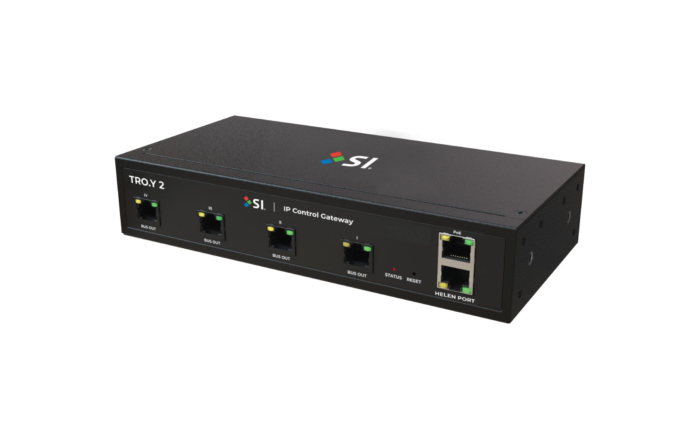

TRO.Y™ 2

NEW & IMPROVED

Wired & Wireless* IP/PoE Control Gateway

* when paired with a wireless gateway

The updated TRO.Y 2 is an expandable IP based PoE automation and control gateway. Supports 485 shades and screens with its built in 4 data ports, and Zigbee and SubGHz (RTS) when paired with wireless gateways and bridges such as LinkPro Z and many others. Control over IP and 232 from all popular systems such as Control4, Crestron, Lutron, and many others. This is a full-featured gateway that provides remote access for easy servicing and a built-in web server for commissioning, motor limits. Create scenes and events with the new built-in real time clock. Can be powered from PoE switch or the included PoE injector, can mount in rack, half rack, on din rails or in structured wiring enclosures, and is Plenum rated.

Projector Central - InfoComm 2021 - Best of Show Winner


Find Local Dealer

512-832-6939
M – F, 8AM – 6PM

We're here to help with any
questions or problems.
Visit Support

Email our support team with any questions or problems.
Contact Support

Meet SI Ecosystem

A single platform for shades and screens that includes PoE and 485 wired, 2-way wireless mesh, and RF wireless control.

Meet SI Ecosystem

A single platform for shades and screens that includes PoE and 485 wired, 2-way wireless mesh, and RF wireless control.

Installer Benefits

Installer Benefits

Fast to deploy
Fast to deploy
Robust
Robust
Mesh strength
Mesh strength
Change channel on the fly
Change channel on the fly
Fast to deploy
No additional truckrolls
Mega scale 150 wireless / 512 wired
Mega scale 150 wireless/512 wired

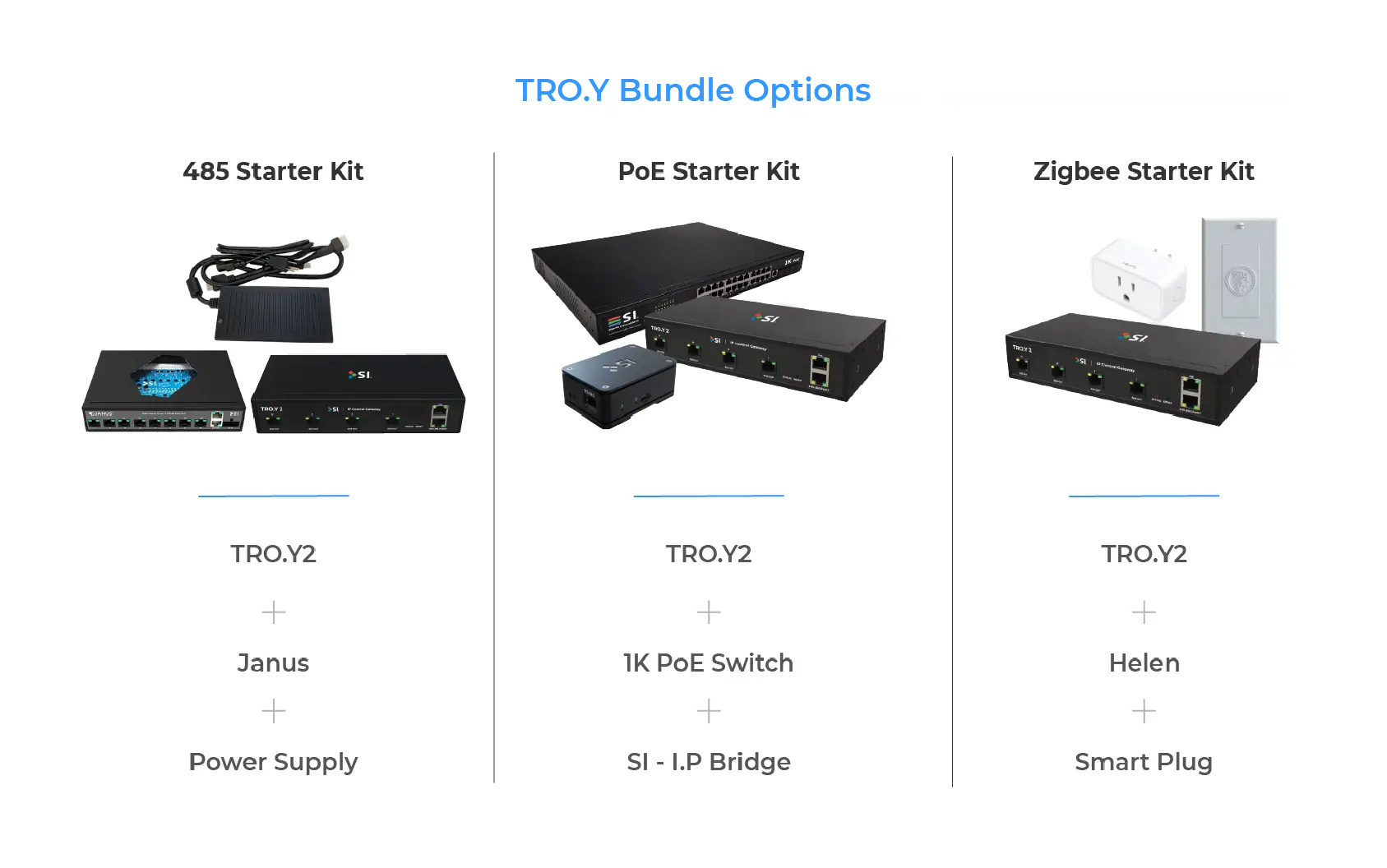

SI Ecosystem Bundle Options

Select the right bundle that meets your project needs.

TW3
Wired
Ecosystem - Wired
TWW3
Wired + Wireless
Ecosystem - Wired + Wireless
TWWA3
Wired + Wireless + App
Ecosystem - Wired + Wireless + App
IP Gateway – TRO.Y
3rd Party Control
Wired – 485
Wired – PoE
2-way mesh – Helen
Sub GHz – Pegasus
SI App
Connect Everything!

Where no motor controller has gone before.

Connect Everything!

Where no motor controller has gone before.

Janus Mounting Rack
Janus Mounting Jopplin
Mounting Options

TRO.Y includes both rack mount ears & din rail brackets which enable mounting in any rack or panel. We also offer 3 enclosures from 14″-40″ & additional bracket options to make installation easy and clean.

Janus Mounting Rack
Janus Mounting Jopplin
Mounting Options

TRO.Y includes both rack mount ears & din rail brackets which enable mounting in any rack or panel. We also offer 3 enclosures from 14″-40″ & additional bracket options to make installation easy and clean.

TRO.Y spec drawing

Features
  • 3rd party integration with 485 shades via PoE and RS232
  • 16 Bus power units per port (x4)
  • Advanced control options for all shade types, RTS and Zigbee via its TLS encrypted link
  • Can use wired 485 or wireless RTS keypads to control Zigbee shades or screens
  • Built-in web browser based commissioning, multi-platform compatible (PC/MAC/Mobile)
  • 485 shade, screen and keypad programming
  • 3rd party keypad integration
  • 4 times the processing and bus architecture compared to other 485 gateways
  • Innovative SI proprietary site files and templates to store and accelerate commissioning
  • Exclusive assignable node ids for 485 motors saving time and money on 3rd party controls
Power Input

PoE (AT/BT) – 48v DC

Power Consumption

5 Watts

Max. Wiring Distance (485)

200’ per port (4 ports in total)

Max. Wiring Distance (Ethernet)

328’ from the router using standard Cat5e cable

Material (Indoor use only)

Sheet metal plenum rated


Dimensions
  • 8.5’’ L x 4.1’’ D x 1.69” H
    (216mm x 105 mm x 43 mm)
  • 1RU/Half Rack compatible
Parts in the Box (#201559)

1 TRO.Y unit, PoE Power Injector, Cat5e Patch Cable,
2 Universal Rack Ears, 1 Rack Mount Fascia, 10
Universal Mounting screws, 2 Din Rail Screws, 1
Long Rack Ear, 1.5 mm Hex Tool, 2 Universal Din Rail
Brackets, 8 Terminal Blocks, 4 Rack Mount Screws
Quick Start Guide


Drivers
  • AMX® by Harman
  • Control4®
  • Crestron® Crestron Home
  • Crestron® SIMPL
  • ELAN
  • Extron IPCP Pro xi Series
  • JOSH®*
  • Lutron
  • LOXONE
  • QSC® Q-SYS**
  • RTI XP-8v**
  • SAVANT
  • URC**
  • Utelogy**

Downloads available on Drivers site
*via TRO.Y (C4 or Crestron driver)
**coming soon

Works with
  • Nano® Shades
  • Zen® Shades
  • Solo Pro 2 Screen
  • Motorized 3 / 5 Screens
  • Decoflex keypads
  • Janus
  • Fontus
  • Duocoup
  • LinkPro Z
  • TaHoma
  • Situo remotes
  • RTS Receiver (RTS to 485)
  • Smoove keypads
  • Telis remotes
  • Solo remote
  • Connect
  • Jopplin enclosure kit
