Please use our screen builder or consult with your system designer for an official specification drawing
Sizes
Max: 220” (5588 mm) in 16:9
Max: 226” (5740.4 mm) in 16:10
Max: 275” (6985 mm) in 2.35:1 / 2.40:1
Standard sizes only. All sizes are measured diagonally. Some materials may be limited in size. All dimensions are listed as seamless.
Aspect Ratios
16:9
16:10
2.35:1
2.40:1
Frame

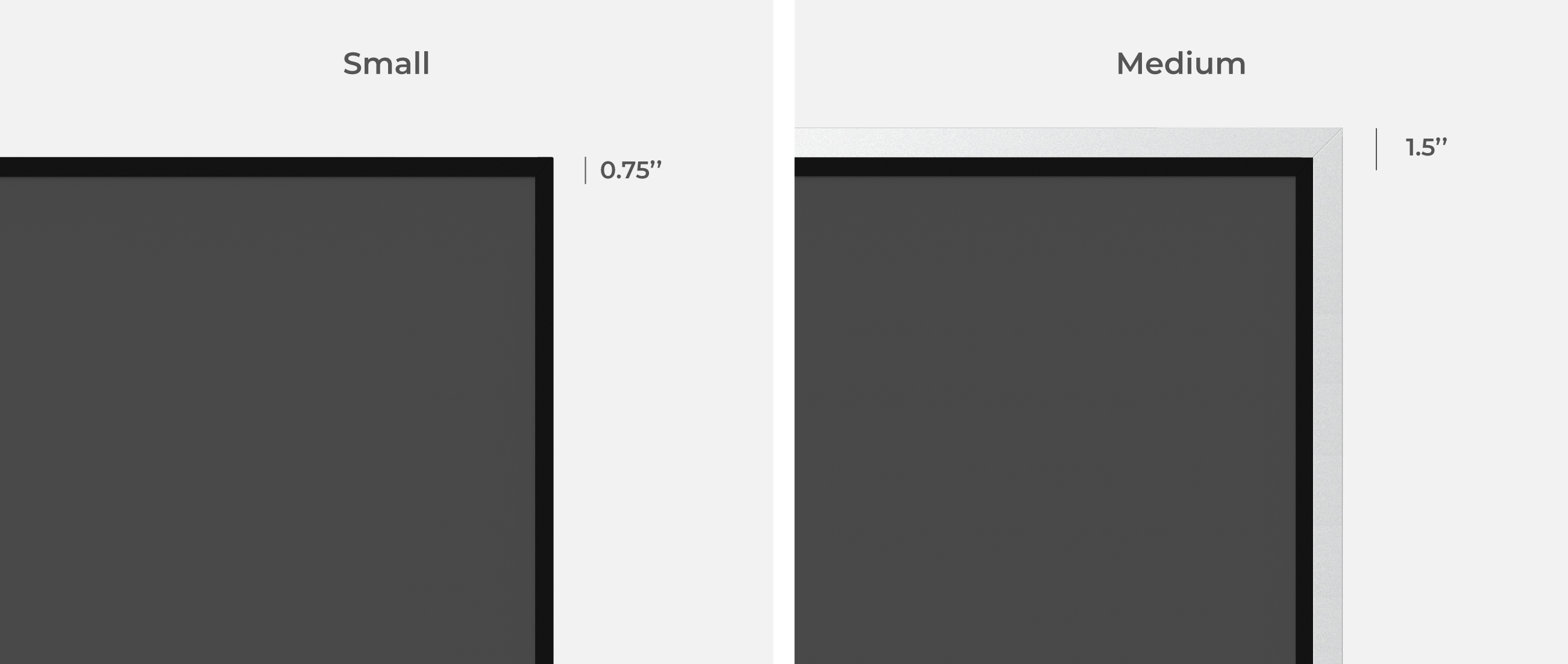

Aluminum extrusion with .625″ (16mm) “Zero Edge” style bezel.

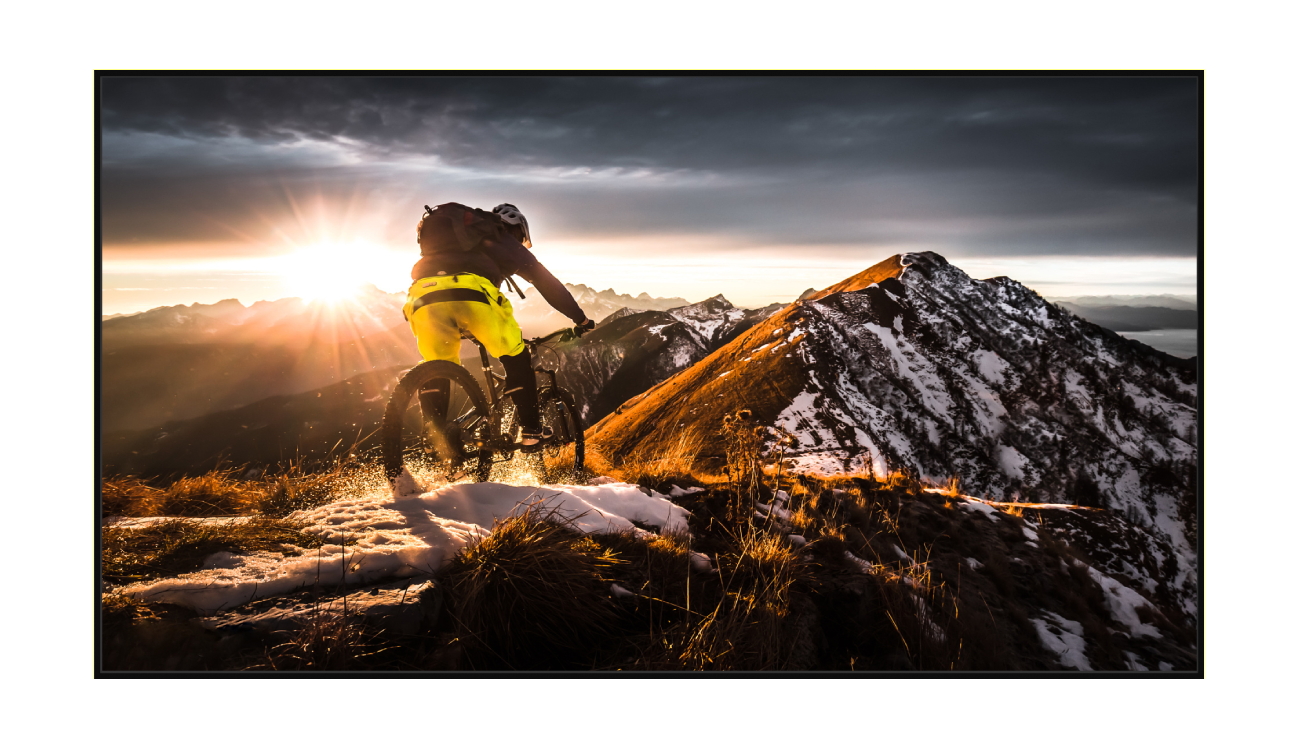

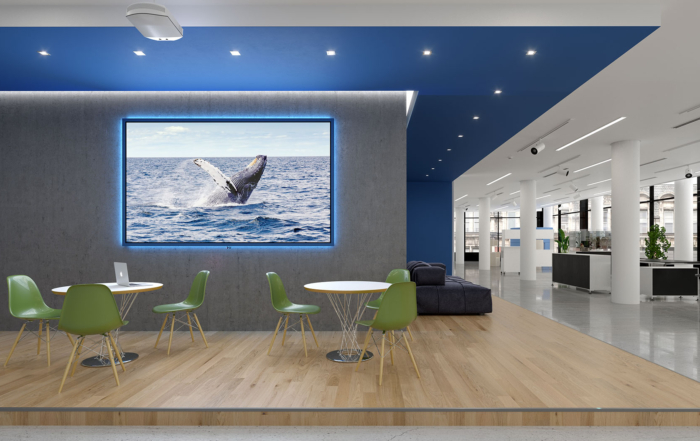

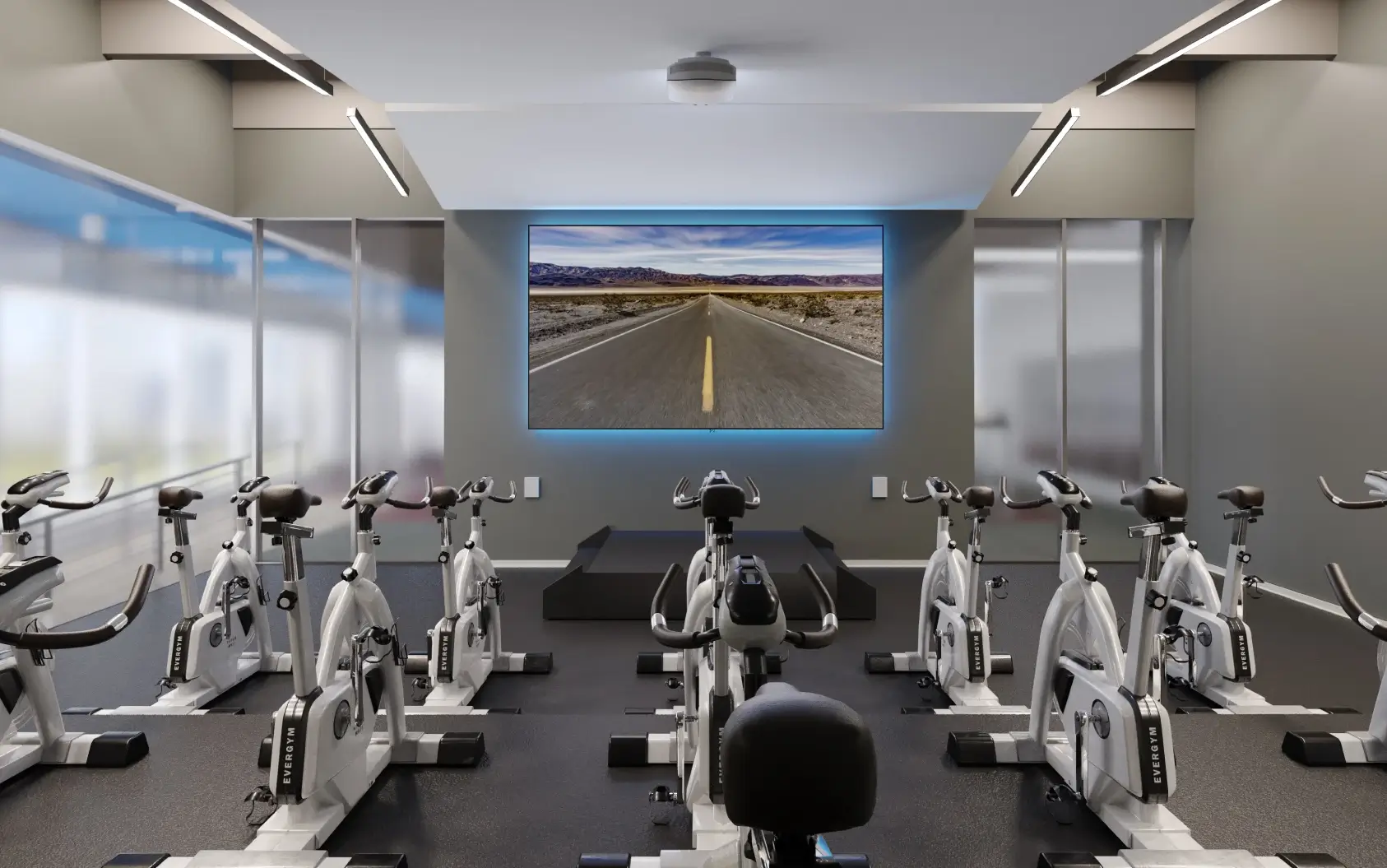

Built in LED channel for optional backlighting.
|
|
|
|
|
|
|
|
|
